     Latest News: FNT brand for type H200,H230 and H273 relays have passed

    the testing of Germany VDE. The VDE License is issued.

Products-Relays〔1〕                                                 Next page

     Our factory imports the advanced product lines and uses the material which conforms to UL requirements to produce the general miniature type relays. 80%  of our products are exported to America, Canada, West Europe etc. The main products are illustrated as follows.

Item  H2xx : 5A/240VAC Contact Rating

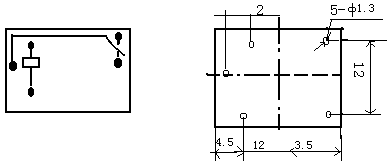

Type:H200

Outline:20×16×24mm (L× W× H)

Contact Rating:15A 24VDC/10A 240VAC

Contact Resistance: ≤100m Ω

Coil power:0.36W

UL file:E155849/ E196982




  Click here for detail

　



Tpye:H200 Series Surge-Proof Current  Relay

Outline:20.5×16.5×24mm (L× W× H)

Contact Rating: 6A 24VDC/3A 240VAC

                      10A 24VDC/5A 240VAC

                      SPDT / SPST( surge-proof)

Features: surge-proof current reaches to 80A200VAC.

UL file:E155849/ E196982


 Click here for detail

　



Type:H230

Outline:22×17.5×17mm (L× W× H)

Contact Form: 15A 24VDC/10A 240VAC

Contact Resistance: ≤100mΩ

Weight:13g

UL file: E196982


Click here for detail

　

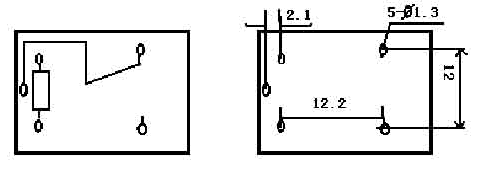

Type:H273

Outline:19.5×15.5×15.2mm (L× W× H)

Coil Power:0.36W;0.45W

Contact Resistance:≤100mΩ

Weight:9g

UL file: E196982


Click here for detail

　

Item H4xx: its coil contact

Type:H400 Relay

Outline:28.9×12.6×20.6mm (L× W× H)

Coil Power:0.54W.0.72w

Contact Resistance:≤100mΩ

Weight:13g


Click here for detail

　

Type:H410 Relay

Outline:15.5×11×11.5mm (L× W× H)

Coil Power:0.2W,0.36W,0.45W

Contact Resistance:≤50mΩ

Weight:3.5g


Click here for detail

Type:H480 Relay

Outline:18.8×10.6×15.3mm (L× W× H)

Coil Power:0.2W,0.45W

Contact Resistance:≤100mΩ

Weight:6g


Click here for detail

　

Type:H420 Relay

Outline:30.5×16.5×23

Contact Arrangement:1A 1C

Contact Rating:24VDC/20A  250VAC/20A

Contact Resistance:≤100mΩ

Weight:23g

   layout: in420.gif (2864 字节)

Click here for detail

Next page
