  Type:  H840 Relay



Specification:

 External Dimension  27.641.536
 Contact Arrangement  4C
 Contact Rating  24VDC/10A  240VDC10A
 Contact Resistance (max)  100M
 Ambient Temperature  -40--70
 Nominal Voltage  DC6-110V  AV6-220V
 Coil Consumption  DC1.5W  AC2.5VA
 Pick-up (max)  DC75%  AC80%
 Drop-out(min)  DC10%  AC30%
 Electrical life  100,000
 Dielectric   Strength Between Contacts  1000VAC
Between Coil and Contacts  1500VAC
 Weight  70g

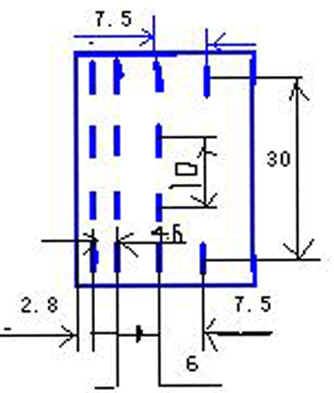

  Mounting holes:
