Type:  H400 Relay

Features:

  • Small volume;

  • Relay switching capacity from 10A to 16A.

  • Switching capacity by 5A available with 2 transfer contact form.

Contact Ratings:

Outline dimension*W*H) ¡¡28.9¡Á12.6¡Á20.6mm

Contact Form

Rated load

 1A,1C,2C

16A 240VAC/30VDC

Contact Resistance ¡Ü100m¦¸
Mechanical Life 10,000,000 Time
Electrical Life 100,000 Time
Shock 100m/ss(10gs)
Vibration 10¡ª55Hz double vibration amplitude 1.5mm
Ambient Temperature 0.54W:-30-70¡æ ,0.72W:-30¡æ-50¡æ

   Coil Ratings:

Coil Power 0.54W;0.72W
Coil Rated Voltage 12VDC
Operated Voltage  (Max) ¡Ü85% Rated Voltage
Release Voltage   (Min) ¡Ý5% Rated Voltage
Nominal Coil Voltage    3-48VDC
Insulation Resistance 100m¦¸
Dielectric Strength Between Contacts 5000VAC/ 1min
Between Coil and Contacts 1000VAC/ 1min
Weigh 13g

¡¡

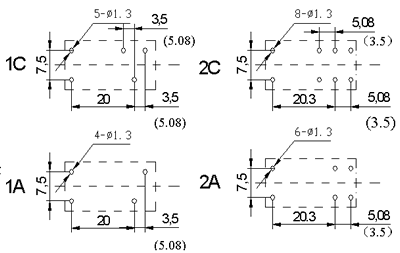

  Layout (Bottom View):
