 Products-Relays〔2〕

     Our factory imports the advanced products line and uses the material which conforms to UL requirements to manufacture the general miniature type relays.80 percent of our products are exported to America, Canada, West Europe and etc.  The main products are illustrated as follows.

　

Type H500 prefer to be used in low-voltage, high-current Switch.



Type:H500

Outline:33×27.5×20.5mm (L× W× H)

Contact Rating:   1C:240VAC 15A ;

                         1A:240VAC 30A

Coil Consusmption:0.9W

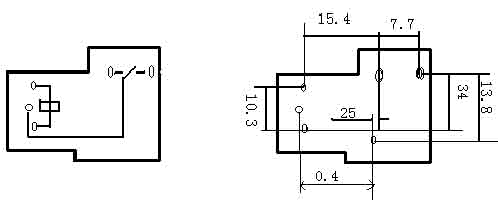

Layout: enima500.gif (3376 字节)



  Click here for detail

　

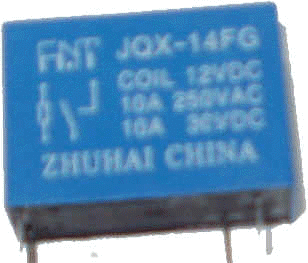

 H700　



Tpye:H700 Relay

Outline:22.3×16.6×11mm (L× W× H)

Contact Form: 1C

Contact Resistance: ≤100mΩ

Weight:10g

Layout:

 Click here for detail

Type H8xx to be used in Household-devices, Industrial appliances.　



Type:H800 Relay

Outline:28×21.5×35 mm(L× W× H)

Contact Form: 2C 3C 4C

Contact Resistance: ≤100mΩ

Weight:37g


Click here for detail

　

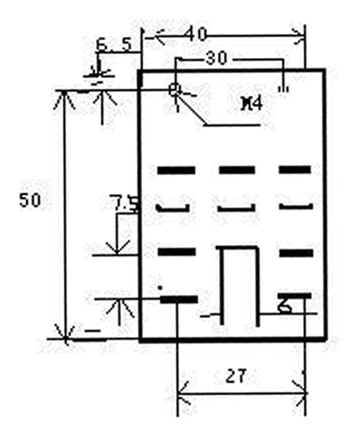

Type:H830 Relay

Outline:64×42×50mm (L× W× H)

Coil Power:2.5W;4.5W

Contact Resistance:≤100mΩ

Weight:125g


Click here for detail

　

Type:H840 Relay

Outline:27.6×41.5×36mm (L× W× H)

Coil Power:1.5W;2.5W

Contact Resistance:≤100mΩ

Weight:70g


Click here for detail

High Current Magnetic Switch:　

Type:100A Magnetic Switch

Outline:φ :47 mm   L: 79mm

Contact Resistance:≤1mΩ

Feature: Low cost, High sensitivity

　

Click here for detail
