S803511L Long Stroke Solenoid Specification

General Features

　

Item

Condition

Required Standard

Dimension



80mm*35mm*11mm

Working Voltage



3VDC / 5VDC  / 12VDC

Ambient Temperature



0~60℃

Fluid Temperature



0~90℃

Stroke



35mm

Operating Durability(Life time)

In normal situation

more than 500,000 strokes

Electrical Features

Working oltage

Power

Duty cycle

Max on time

Force

Time for running 35mm Stroke



5VDC

3.3W

100%

∞

20g

2s

9VDC

10.8W

50%

200s

40g

1s

　

 　

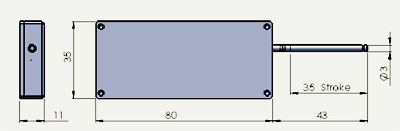

二     Outside Dimensions:



Please be noted: The plunger pushes out when a forward current is given whereas the plunger pulls in when it is actuated by a negative sequence current.

三、  Character

The main character of this solenoid is long stroke, small volume and low power consumption. This product could be applied to battery drive which needs the long stroke but with the limited spaces. We could also customize it for you according to your special requirements.
