     Required Specification of S302013-4S Solenoid

Application: Intelligent Door System

                    Electrical-controlled Bolt

Outline:302013mm

Weight:20g

Duty Cycle:Bistability

   Technical Data:

No.

Item

Condition

Standard

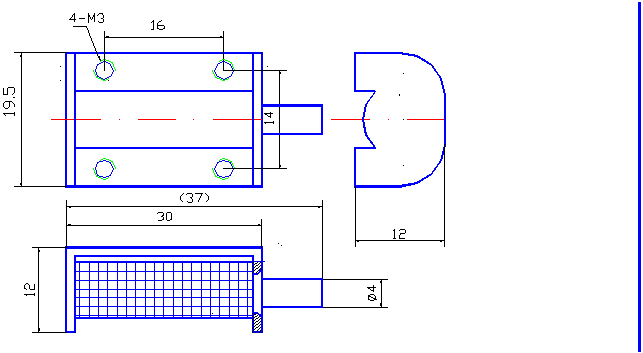

1 Dimension As per attached drawing
2 Rated Voltage DC 3-24V
3 Consumption Power 3.6W 10% pulse0.1sec
4 Stroke 3.6W 10%

4mm

holding force  DC=0V  0mm 3N
4 Withstanding Voltage 500VAC 50/60Hz 1min
5 Ambient temperature   -40---+65
6

Relative humidity

95%

If you have any interest please dont be reluctant to contact us.
