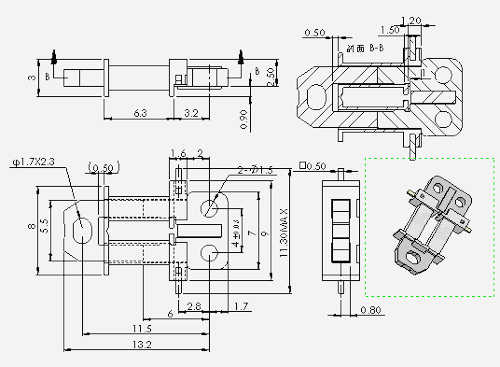

Sz150804-Thinner Self-Latching Type Solenoids



Features

    Only 4mm body thickness for space saving but with high power.

Self-latching is available at zero power consumption by installing permanent magnet

  Applications

CD-ROM, DVD-ROM, Camera

  Performance

Products No.

Rated voltage

Coil resistance

Duty cycle

Holding force(initial)

Releasing force

Sz150804

5VDC

15 ohm

ON Time 0.1sec max

OFF Time 5 sec min

3.2 N min

@0VDC,

stroke 0mm

1N max

@4.5VDC,

stroke 0mm

   We would customize it for your when your required holding force is more than  3.2N.

    If you have any interest please feel free to contact us.

Chinese  About us Relays Solenoids New products Process Contact us

  Type: Neutral Bitable Electromagnet
