Electromagnetic actuator and software kit for quick-finding center of a circle

Features:

1、   Can find quickly the geometry center of an object or the center of a circle taken from CCD camera in a few ms. Data of the center position are then transferred to control electromagnetic actuator. (matrix solenoid, linear motor)

2、   A whole pack service of both electromagnetic actuators and software kit to customers

3. features of the software kit

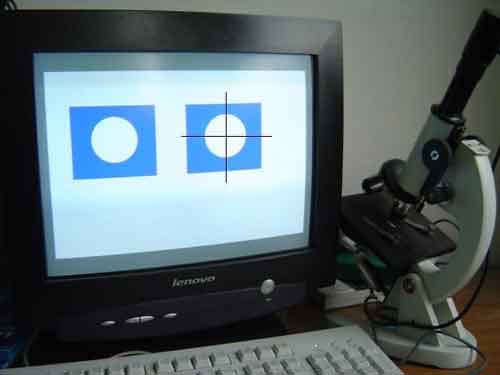

This software kit provides a way to position the center of a circle quickly. It works together with a digital microscopic camera. The microscopic camera obtains the picture of a certain circle (for example a mark or a hole etc), transfer the data to a computer, the software calculates out a best-fit theoretical circle for the picture, and then gives the x-y position data for the circle’s center. For the camera now used, the accuracy of the center positioned can be within about 5 micrometer. It can also find geometry center of other shape than circle.

The software kit runs in Windows platform, copyright by this factory, can be tailored by customer’s specifications.

Applications:

Electromagnetic actuated automatic targeting and catching system; automatic drilling machine, or any other accurate positioning machine and systems.

-------------------------------------------------------------------------------

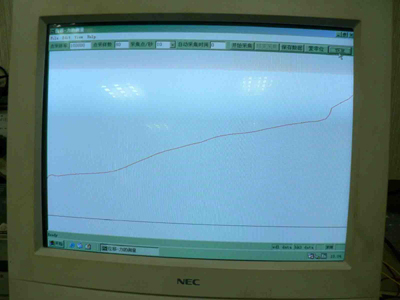

Force-stroke measurement system

(a real time measurement and plotter system for force of push and pull to stroke curve)

Application：

Real time measuring of force-stroke or function curves for solenoids, springs, other devices such as buttons, keys, plugs.

Specifications：

Real time; Force-stroke curve or its function; Windows interface; Easy to operate; measured dada can be stored and printed; Personal computer connection; economic

The system：

１、Force transducer; stroke transducer

２、Software package for operating and plotting

３、Personal computer with A/D card

４、Frame and mechanical coordinates

Result of collaboration with university; self-owned intelligence; good service.

Long term test of reliability has been finished. Now we accept order from customers.

Please offer us data when you order：

1、Maximum range: force (N), stroke (mm)

２、Highest resolution: normally we can do

Force: 0.01N, stroke 0.01mm

３、Other requirements: Manual or automatic, application environment

-------------------------------------------------------------------------------

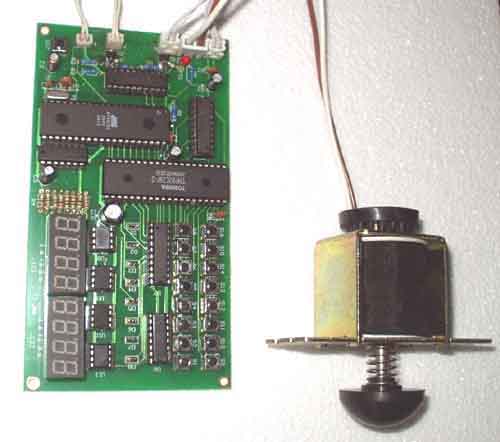

Electromagnetic parts with programmed controller

 Features: Tailor-made for customers. Provide One-Stop service for the customers who order electromagnet part from us. The system can control solenoid’s force, action times and time interval ; Can control electric valve and relay’s switch times and time interval; Can also control electric pump’s pressure, flux and time interval etc.

  Applications: Massager、manipulator, auto irrigation system, auto door-locking system, auto water meter. Robot hands、irrigation system、music controlled water spring、IC door lock、IC gage。

Specifications

1.        human body massager with setting button and parameter display, controlling circuit board with programmed micro-processor

2.        Low Noise solenoid ：
